Making of weapons - Kyjov sword

Final photos you can see in section weapons: Sword (163).
Process of conservation see: conservation of Kyjov sword.

In 2010 was found near Kyjov (Czech republic) a man's grave with sword, spear and shield. The sword was excavated from the grave by technique "in situ". In the years 2012-2014, the sword was researched and conservated by author in Technical museum in Brno. By this research was made the reconstruction of the sword.

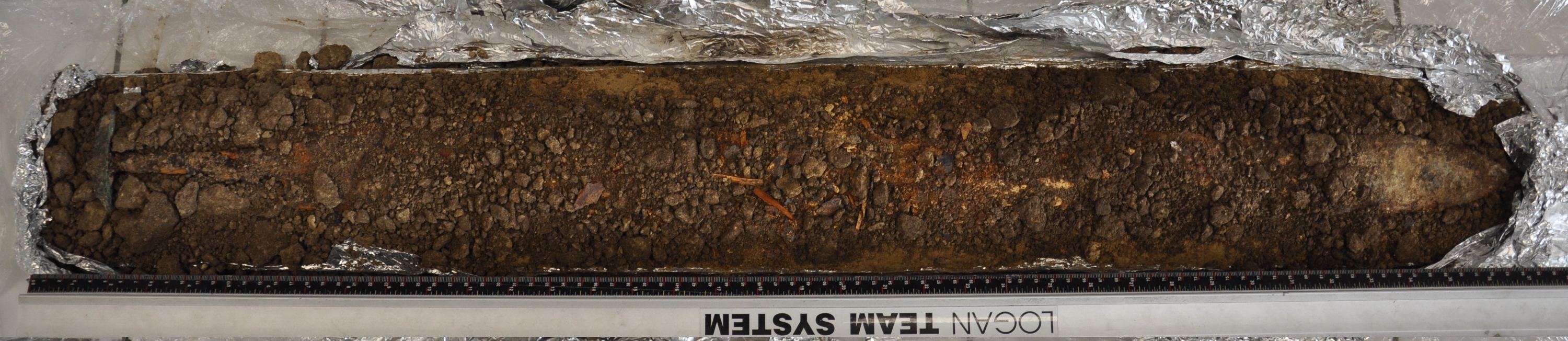

the sword excavated by technique in situ
the sword excavated by technique "in situ"

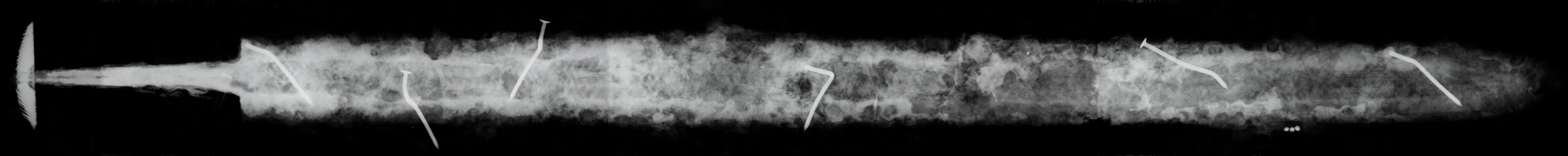

the x - ray picture of the sword with visible inlaying of the pommel and pattern-welding of the blade
the x - ray picture of the sword with visible inlaying of the pommel and pattern-welding of the blade

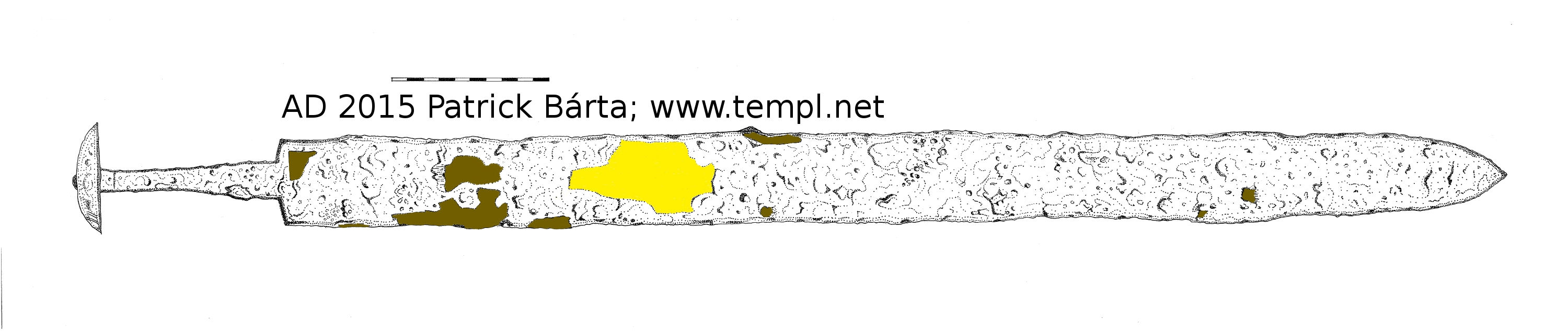

organic residues on the front side of the sword, yellow leather, brown wood

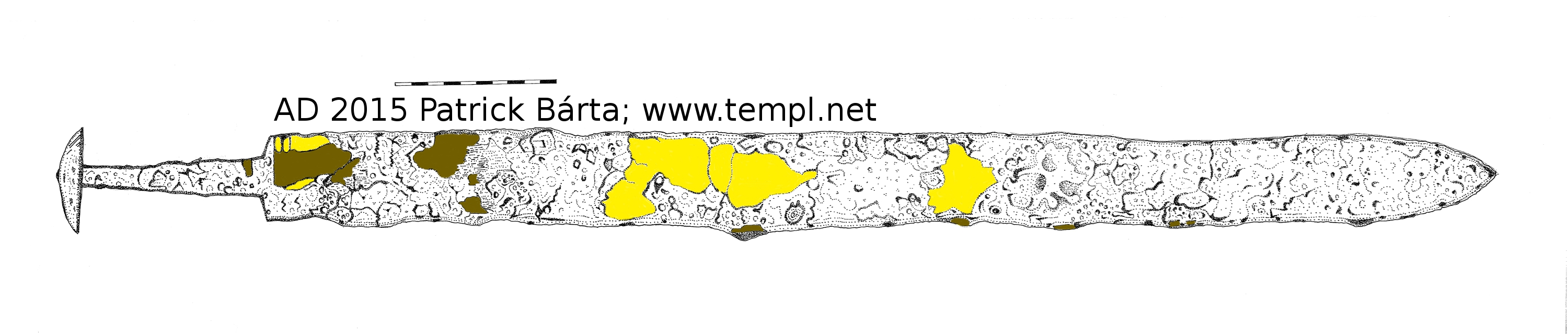

organic residues on the back side of the sword, yellow leather, brown wood
organic residues on the front and back side of the sword, yellow leather, brown wood

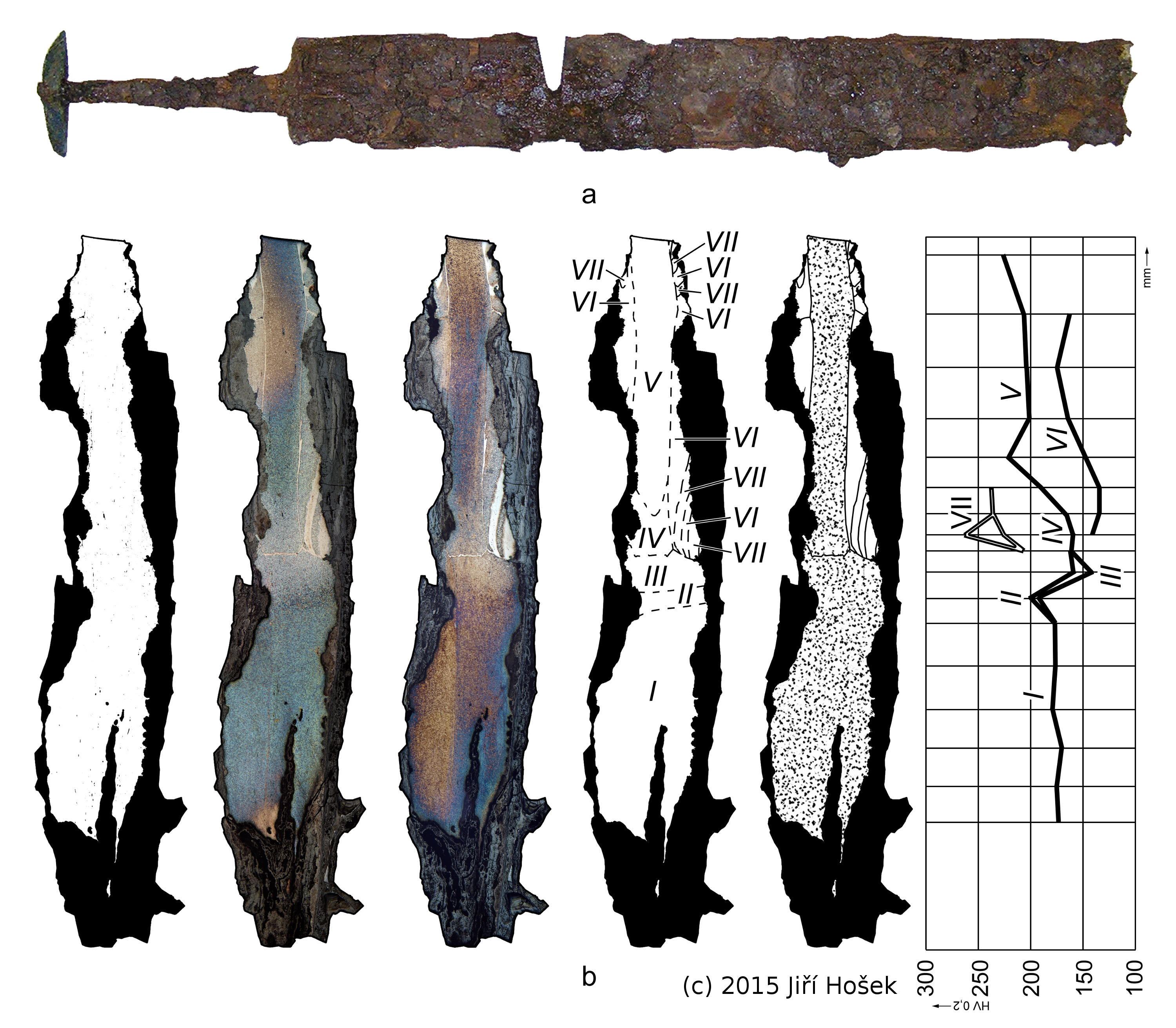

metalographic research of the blade
metalographic research of the blade

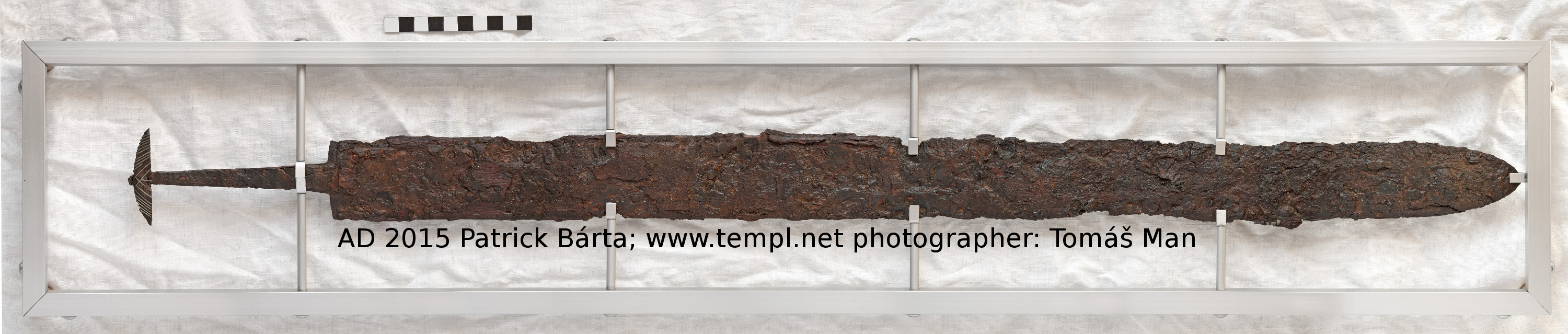

front side of the conservated sword

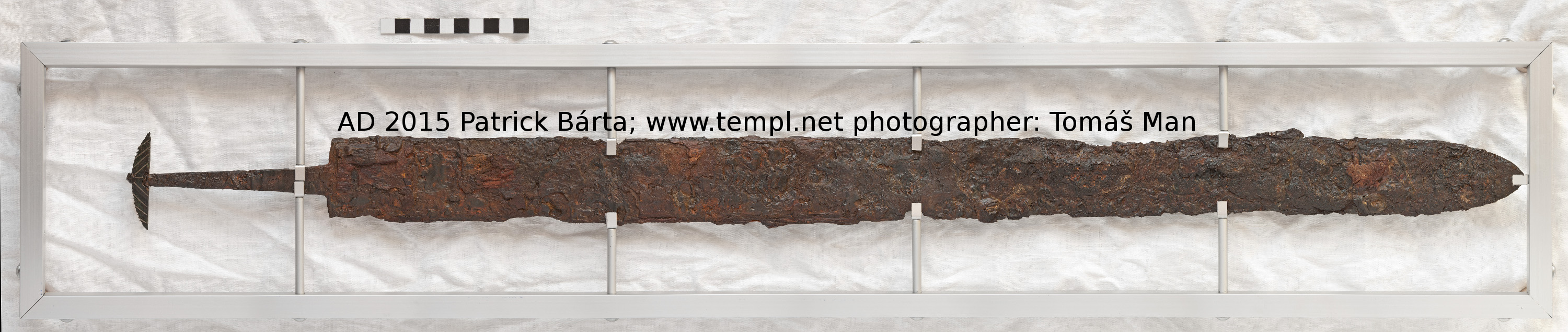

back side of the conservated sword
front and back side of the conservated sword

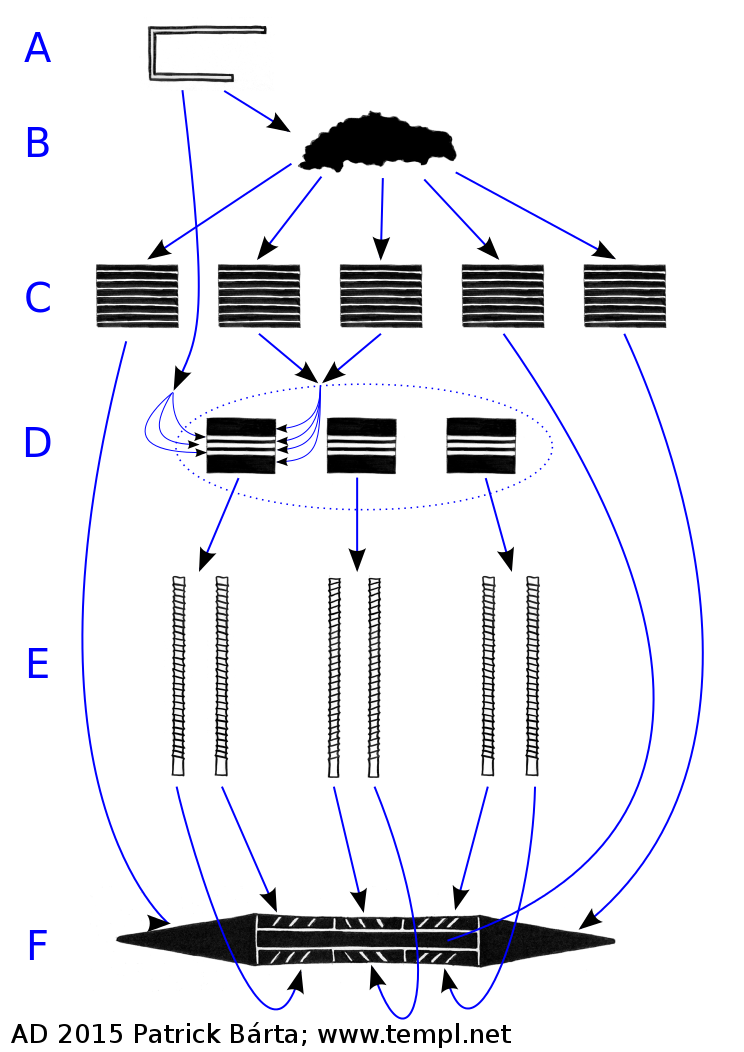

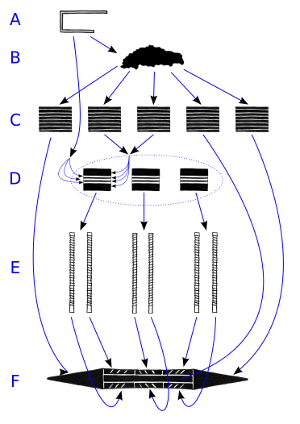

the scheme of the blade making process
the scheme of the blade making process

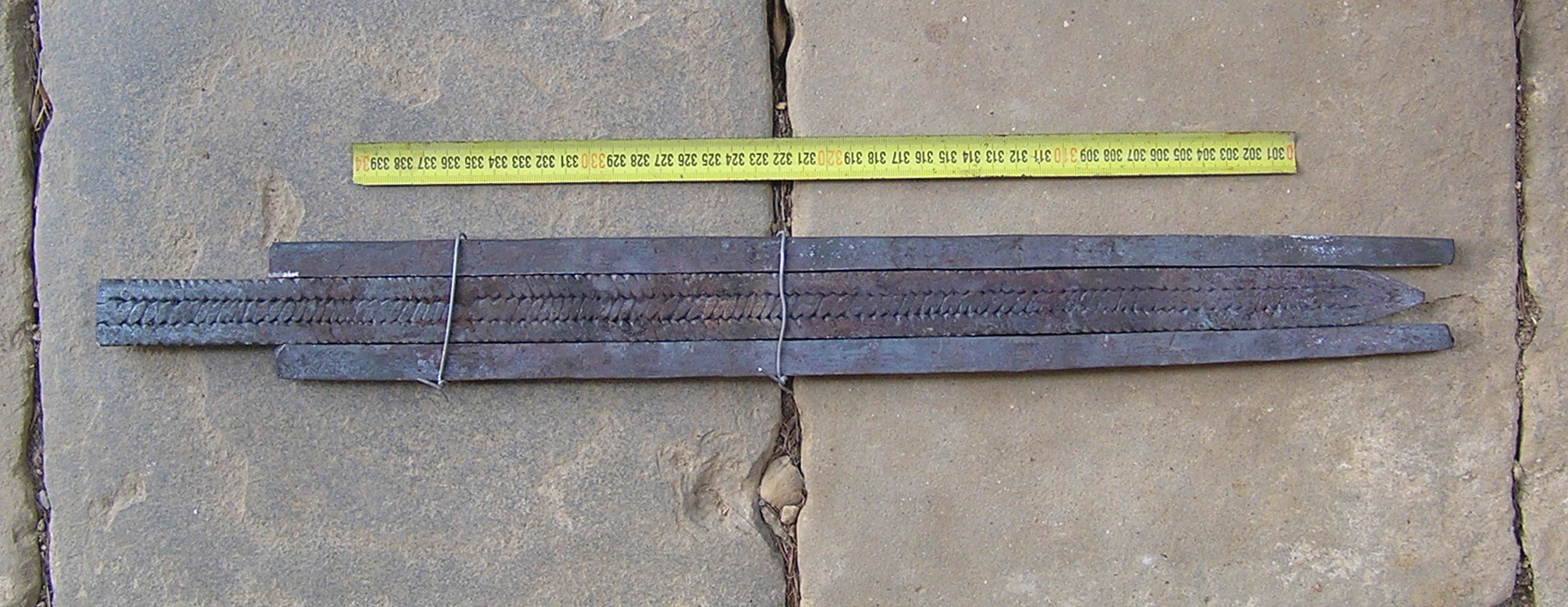

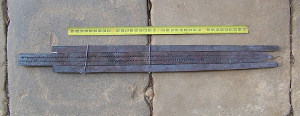

the blade before last welding
the blade before last welding

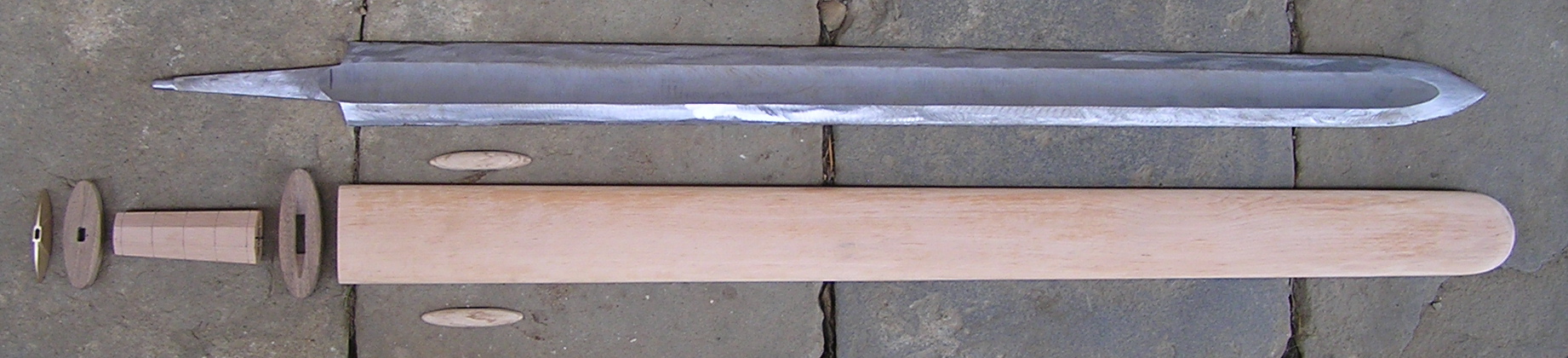

rough worked parts of the sword
rough worked parts of the sword

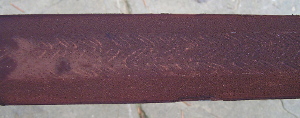

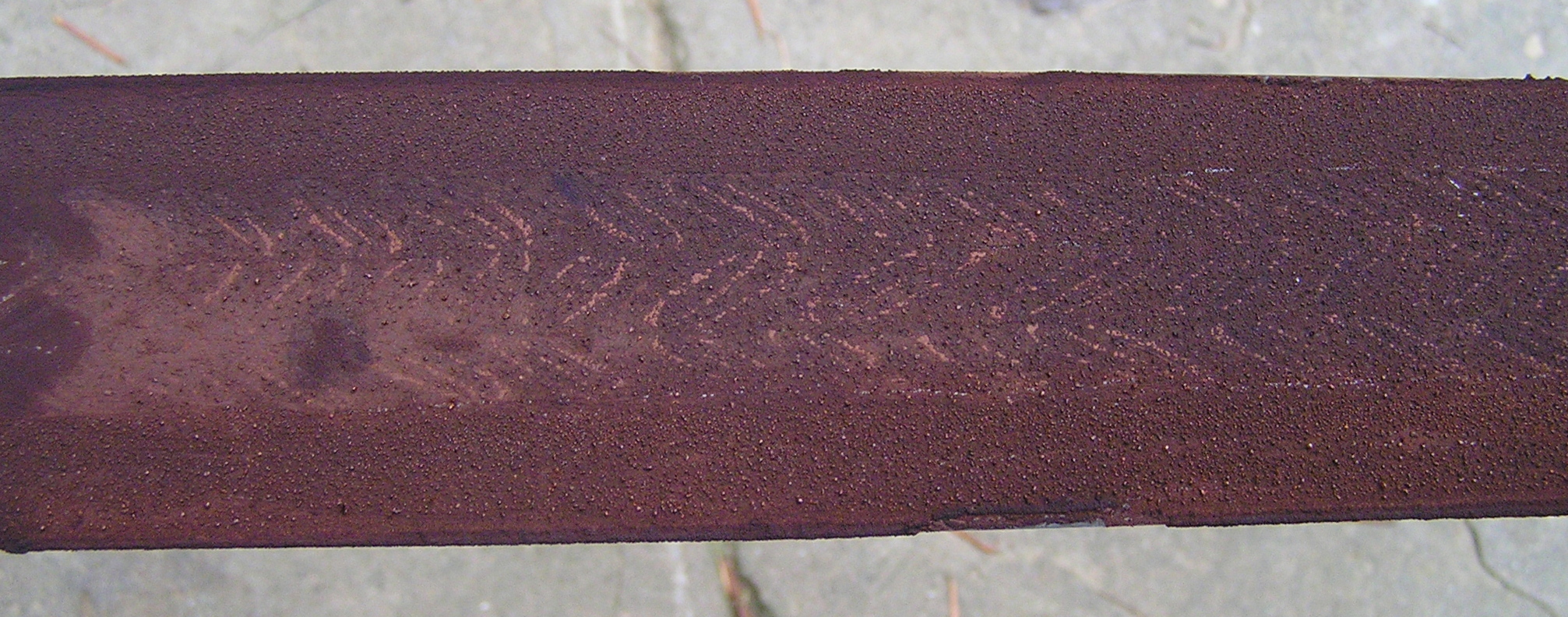

highlighting of pattern-welding by checked corrosion in vinegar vapours
highlighting of pattern-welding by checked corrosion in vinegar vapours

Autor thanks to staff of Technical museum in Brno for their help in project of research, conservation and reconstruction of Kyjov sword.
